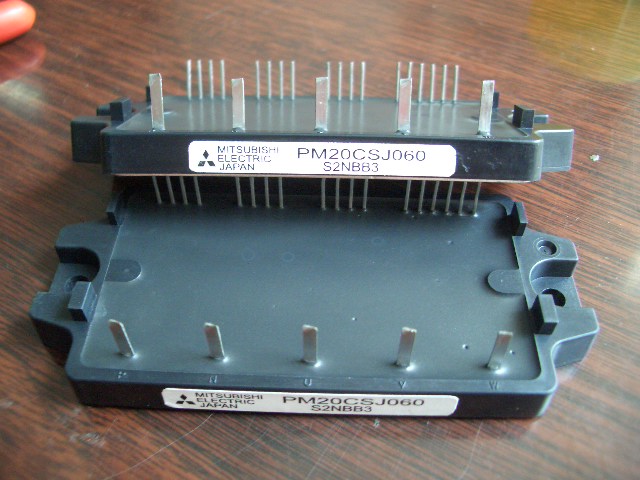

PM20CSJ060

Description:
Mitsubishi Intelligent Power Modules
are isolated base modules designed
for power switching applications
operating at frequencies to
20kHz. Built-in control circuits provide
optimum gate drive and protection
for the IGBT and free-wheel
diode power devices.
Features:
u Complete Output Power
Circuit
u Gate Drive Circuit
u Protection Logic
– Short Circuit
– Over Current
– Over Temperature
– Under Voltage
Applications:
u Inverters
u UPS
u Motion/Servo Control
u Power Supplies
